Multiband RoF(Radio over Fiber) Module
These RoF Module are used to analog optical transmission systems for mobile communication networks.
The multi band RoF Module is composed of one Donor module and one Remote module for point to point communication, or one Donor module and several Remote modules for cascading network communication.
It is designed to transmit and receive the signal of FWD/RVS with one optic fiber by using WDM. Donor module converts RF signal from BTS to optic signal and transmits it to Remote side. Remote module converts RF signal from terminal to optic signal and transmits it to Donor side. The conversion loss is compensated. The both side modules convert RF signal to optic signal and transmit it with one optic fiber. The method could minimize the transmission loss and noise level so that it is possible to transmit the signal to long distance.
- Features
- Applications
- Data sheet

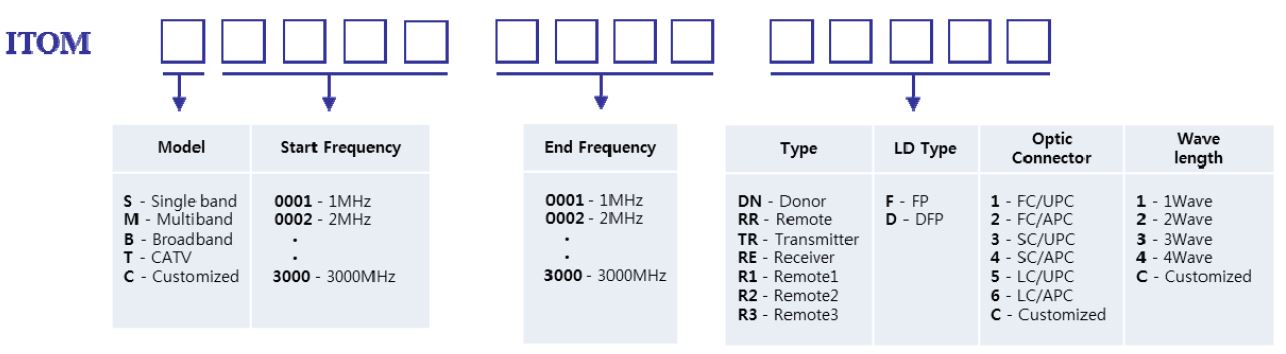

- Ordering information
FSK Modem for communication
Optical Link Fail Alarm
High Isolation & Bidirectional type
DFB Laser Diode
High Sensitivity & High Dynamic Range
Analog Optical Repeater
Mobile communication network system
Transmission systems for CATV & MATV
Wireless Communication System
Satelite transmission system
| MODEL NAME | Dwonlink Uplink |
Frequency | Wavelength | Power | Gain | Flatness | Datasheet |
|---|---|---|---|---|---|---|---|
| MHz | nm | dBm | dB | dB(p-p) | |||
| ITOM-M0824-2150-xxx22 | DL | 869~894/2110~2150 | 1550 | 7 | 0±1 | 2 | data sheet download |
| ITOM-M0824-2150-xxx22 | UL | 869~894/1920~1960 | 1310 | 7 | 0±1 | 2 | data sheet download |
| ITOM-M0065-1870-xxx43 | DL | 1705/1860~1870 | 1310 | 7 | 5±2 | 0.8 | data sheet download |
| ITOM-M0065-1870-xxx43 | UL | 1705/1860~1870 | 1310 | 5 | 0±2 | 0.8 | data sheet download |
