Description
Low insertion loss
High rejection performance from spurious signal
Low PIMD performance
Low volume & weight

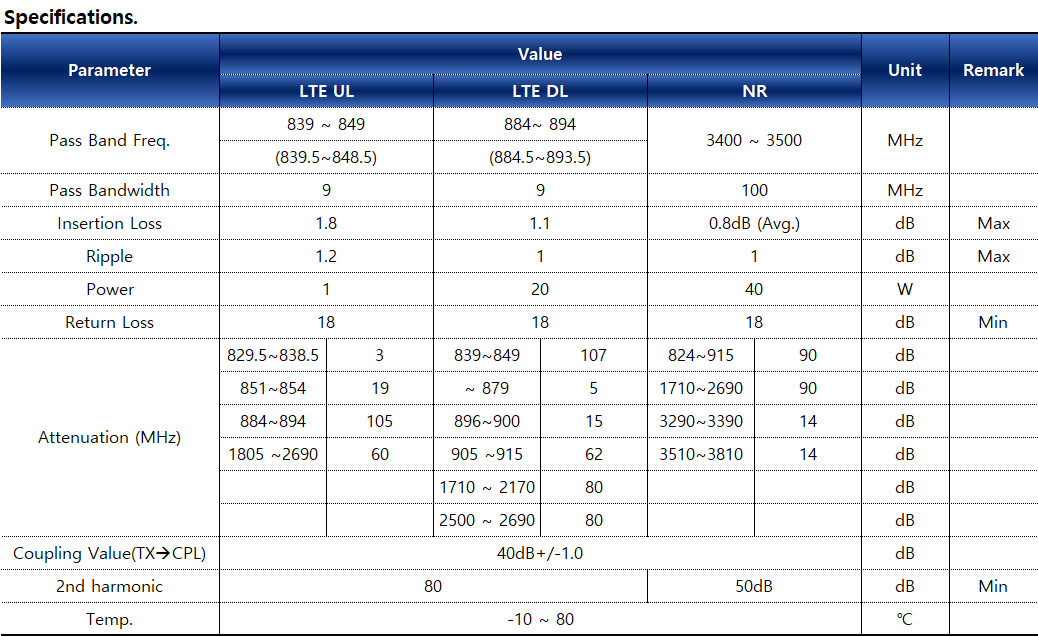

Specifications.
| Parameter | Value | Unit | Remark | |||||
| LTE UL | LTE DL | NR | ||||||
| Pass Band Freq. | 839 ~ 849 | 884~ 894 | 3400 ~ 3500 | MHz | ||||
| (839.5~848.5) | (884.5~893.5) | |||||||
| Pass Bandwidth | 9 | 9 | 100 | MHz | ||||
| Insertion Loss | 1.8 | 1.1 | 0.8dB (Avg.) | dB | Max | |||
| Ripple | 1.2 | 1 | 1 | dB | Max | |||
| Power | 1 | 20 | 40 | W | ||||
| Return Loss | 18 | 18 | 18 | dB | Min | |||
| Attenuation (MHz) | 829.5~838.5 | 3 | 839~849 | 107 | 824~915 | 90 | dB | |
| 851~854 | 19 | ~ 879 | 5 | 1710~2690 | 90 | dB | ||
| 884~894 | 105 | 896~900 | 15 | 3290~3390 | 14 | dB | ||
| 1805 ~2690 | 60 | 905 ~915 | 62 | 3510~3810 | 14 | dB | ||
| 1710 ~ 2170 | 80 | dB | ||||||
| 2500 ~ 2690 | 80 | dB | ||||||
| Coupling Value(TXàCPL) | 40dB+/-1.0 | dB | ||||||
| 2nd harmonic | 80 | 50dB | dB | Min | ||||
| Temp. | -10 ~ 80 | ℃ | ||||||
