Description
With the rapid increase in mobile data usage, customers' radio equipment supporting frequency expansion and multi-band MIMO are striving to miniaturize front-end components to reduce CAPEX.
Our products are designed to meet the design requirements of customers' miniaturization efforts.

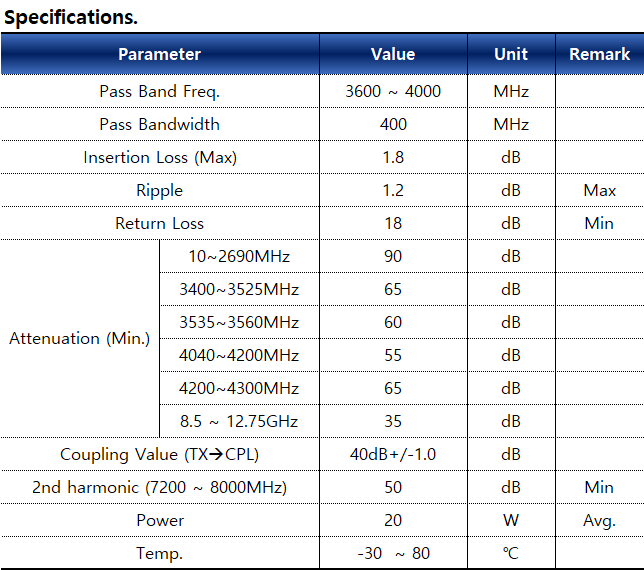

Specifications.
| Parameter | Value | Unit | Remark | |
| Pass Band Freq. | 3600 ~ 4000 | MHz | ||
| Pass Bandwidth | 400 | MHz | ||
| Insertion Loss (Max) | 1.8 | dB | ||
| Ripple | 1.2 | dB | Max | |
| Return Loss | 18 | dB | Min | |
| Attenuation (Min.) | 10~2690MHz | 90 | dB | |
| 3400~3525MHz | 65 | dB | ||
| 3535~3560MHz | 60 | dB | ||
| 4040~4200MHz | 55 | dB | ||
| 4200~4300MHz | 65 | dB | ||
| 8.5 ~ 12.75GHz | 35 | dB | ||
| Coupling Value (TXàCPL) | 40dB+/-1.0 | dB | ||
| 2nd harmonic (7200 ~ 8000MHz) | 50 | dB | Min | |
| Power | 20 | W | Avg. | |
| Temp. | -30 ~ 80 | ℃ | ||
