CWDM Sub-channels FWDM Module

Functional Description

    Intec’s CWDM sub-channel FWDM Module uses to extend optical channel on mobile communication networks. We have CWDM sub-channel FWDM module dividing to low band and high band for each CWDM band. We also have the module dividing to 6wavelength for each CWDM band.

We recommend these module to extend channel number saving the cost for CAPEX.

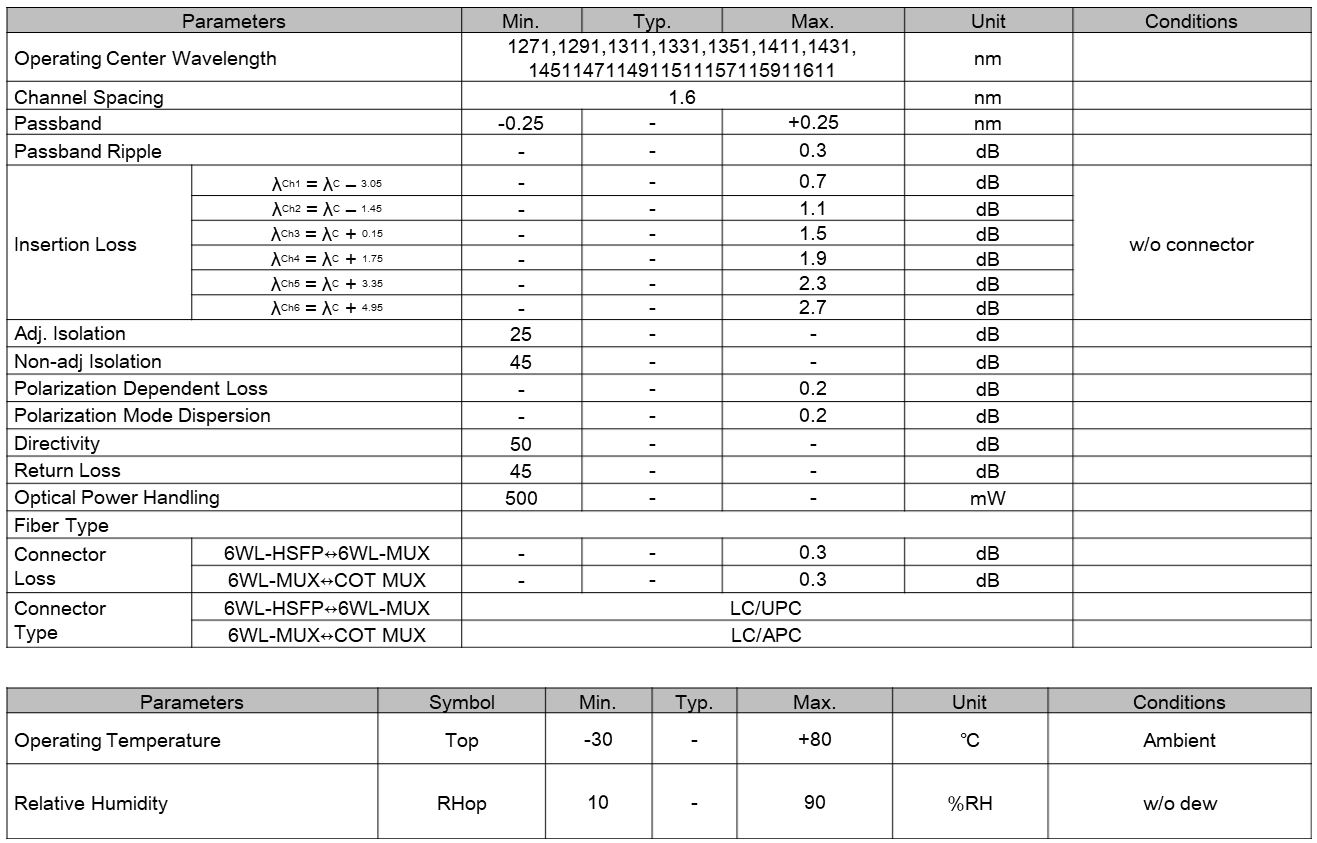

▶ Optical Characteristics  ( 6WL CWDM Sub-channel MUX )

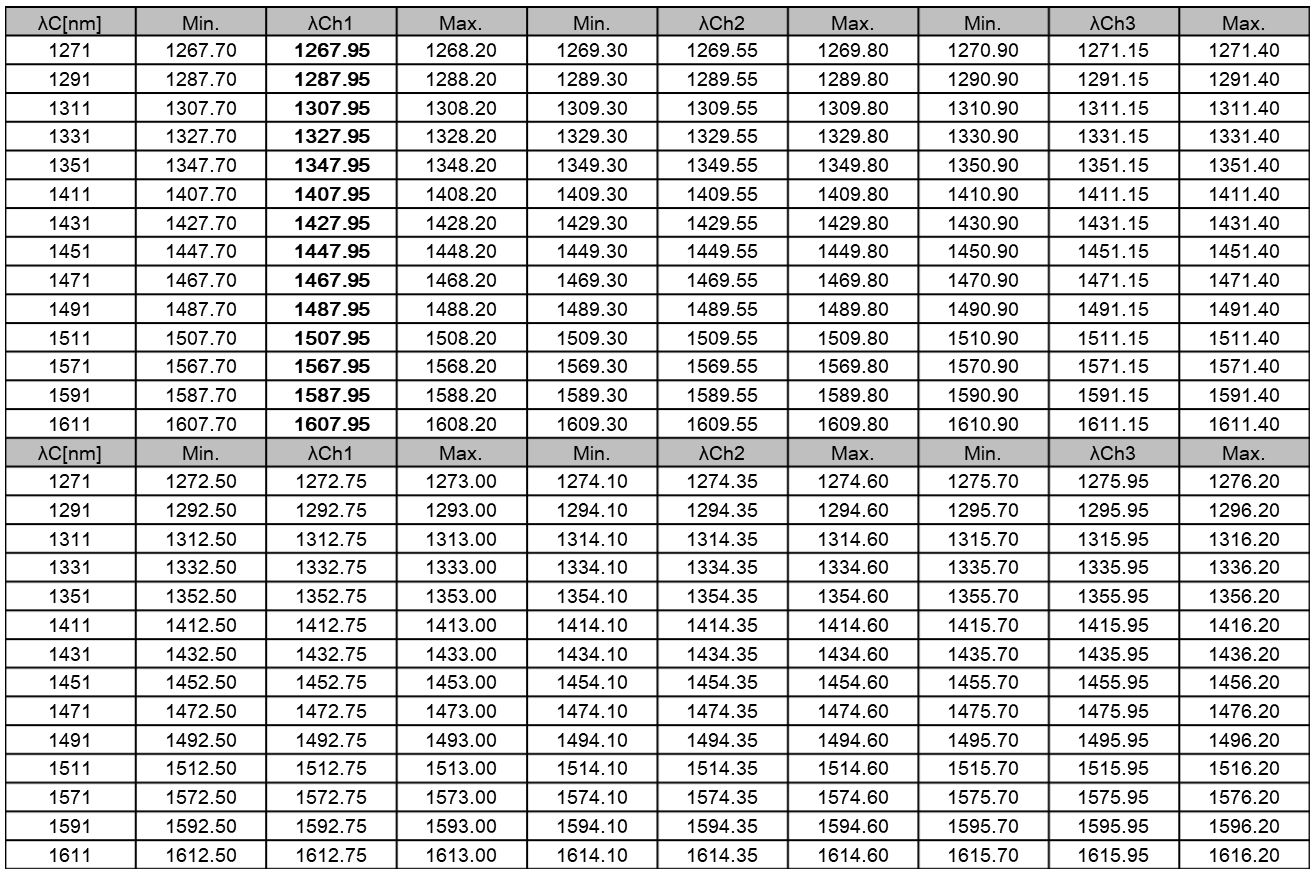

 ▶ Wavelength Plan  (6WL CWDM Sub-channel MUX )

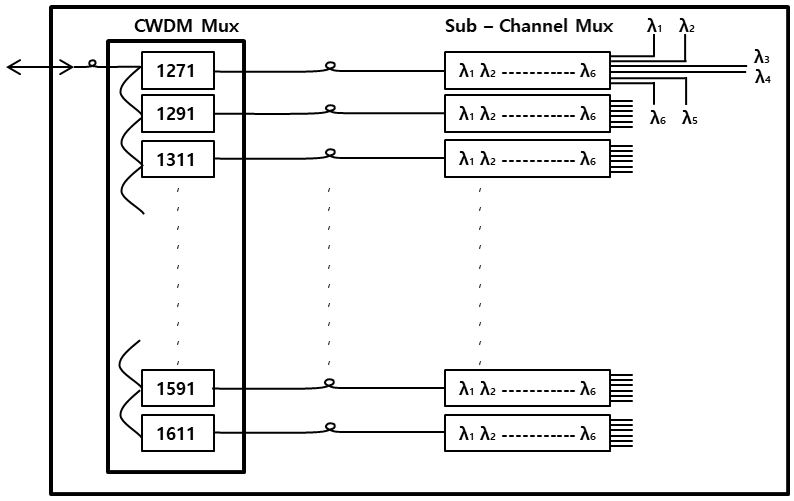

 ▶ STRUCTURE for CWDM + Sub-Channel MUX

  • Features
  • Applications
  • Ordering information

Wide pass band
Low insertion loss
High isolation
High stability and rellability
Telordia qualification compliant

Mobile access network
CATV Network
Optical communication network
DWDM Transmission System
Optical system for channel expanding
