8.5GHz Bandwidth RoF(Radio over Fiber) Module
It is designed to transmit and receive the signal of FWD/RVS with one optic fiber by using WDM.
Donor module converts RF signal from BTS to optic signal and transmits it to Remote side. Remote module converts RF signal from terminal to optic signal and transmits it to Donor side.
The conversion loss is compensated.
The both side modules convert RF signal to optic signal and transmit it with one optic fiber. The method could minimize the transmission loss and noise level so that it is possible to transmit the signal to long distance.
Intec’s Wide band of RoF Optical Modules have been developed with in-building mobile communication and CATV systems like optical DAS systems for VHF, UHF, PCS, GSM, CDMA, WCDMA, LTE and 5G service.
The modules provide a diagnostic control function through RS232 interface.
We will develop more advanced wide multiband modules reflecting the requirements of different customers.
- Features
- Applications

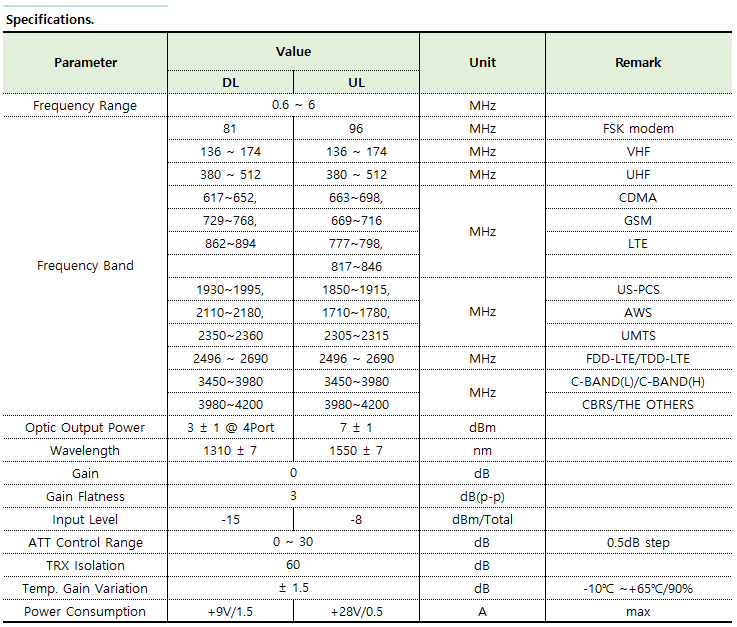

- Data sheet
- Ordering information
For VHF/UHF Band, 600~970MHz Band, 1700~3700MHz Band
LD/PD Monitoring and Alarm
Bidirectional Transmission with Isolated DBF Laser
High Dynamic Range and Low Noise RF Front-End
Automatic Optical Power & Automatic RF Gain Control
Using FSK Modem and RF Attenuator
Optical DAS System
In- building Mobile Communication Systems
| MODEL NAME | Dwonlink Uplink |
Frequency | Wavelength | Power | Gain | Flatness | Datasheet |
|---|---|---|---|---|---|---|---|
| MHz | nm | dBm | dB | dB(p-p) |
