4GHz Bandwidth RoF(Radio over Fiber) Module

Functional Description

    These RoF Module are used to analog optical transmission systems for mobile communication networks.


    The 4GHz broad bandwidth RoF Module is composed of one Donor module with several optical ports and one Remote module with one optical port. These modules was developed for DAS system to transmit and receive several kind of signal including 3GHz~4GHz for next 5G mobile communication network.

It is designed to transmit and receive the signal of FWD/RVS with one optic fiber by using WDM. Donor module converts RF signal from BTS to optic signal and transmits it to Remote side. Remote module converts RF signal from terminal to optic signal and transmits it to Donor side. The conversion loss is compensated. The both side modules convert RF signal to optic signal and transmit it with one optic fiber. The method could minimize the transmission loss and noise level so that it is possible to transmit the signal to long distance.

 ▶ Specification

Parameter

 Specification

 Remark

 DL

UL

Unit

 Frequency Range

81~3700

96~3700

 MHz



Optical Output Power

3±1@4port

 7±1@4port

dBm



 Wavelength

1310±7

 1550±7

nm



 RF Gain

136 ~ 174

5±2

dBm



380 ~ 512

10±2

dB

617 ~ 970

2±1

dB

1710 ~ 3700

-1±1

dB

 Temp. Gain Variation

600 ~ 3700

< ±1.5

dB

 -10~65℃ / 90%

 Flatness

136 ~ 174

3

dB

Peak-to-Peak

380 ~ 512

3

dB

617 ~ 970

1

dB

1710 ~ 1915

1

dB

1920 ~ 3700

1.5

dB

 In/Out VSWR

617 ~ 2196

1.6 : 1



VHF, UHF exclusion

2290 ~ 3700

2.5 : 1



 Dynamic Range

136 ~ 3700

-15 ~ 7

-

dBm



 ACLR

LTE

48dBc @ Sc ± 10MHz

-

dBc

600, 700, 800, 3500 Band

WCDMA

48dBc @ Sc ± 5MHz

-

dBc

 1900, 2100 Band

 IMD

600 ~ 3700



60

dBc



 ATT Range

600 ~ 3700

0 ~ 24

dB



 ATT ontrol Error

600 ~ 3700

± 0.7

dB



 Output Noise Floor

600 ~ 3700



< -133

Hz



 Directivity(Isolation)

DL / UL

> 60

dBc



PD Monitor

-5 ~ 10 ± 0.5

dBm

  Normal High

 Optical Connector

SC / APC

Pigtail

 RF Connector

 -



 Supply Voltage

DU

+9V/2A



RU

29V/0.5A







  • Features
  • Applications
  • Data sheet

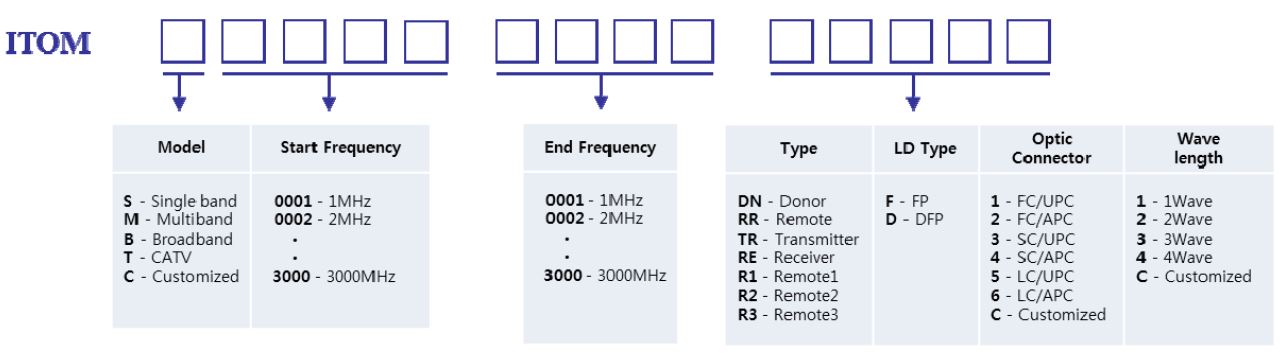

  • Ordering information

FSK Modem for communication
Optical Link Fail Alarm
High Isolation & Bidirectional type
DFB Laser Diode
High Sensitivity & High Dynamic Range

Analog Optical Repeater
Mobile communication network system
Transmission systems for CATV & MATV
Wireless Communication System
Satelite transmission system

data sheet
MODEL NAME Dwonlink
Uplink		 Frequency Wavelength Power Gain Flatness Datasheet
MHz nm dBm dB dB(p-p)
