DWDM SFP
Dense Wavelength Division Multiplexing (DWDM) Small Form-Factor Pluggable (SFP) transceivers provide the high speeds and physical compactness that today's networks require while delivering the deployment flexibility and inventory control that network administrators demand. This DWDM SFPs are available in all 100 GHz or 50Ghz C-band wavelengths on the DWDM ITU grid.
- Features
- Applications
- Data sheet

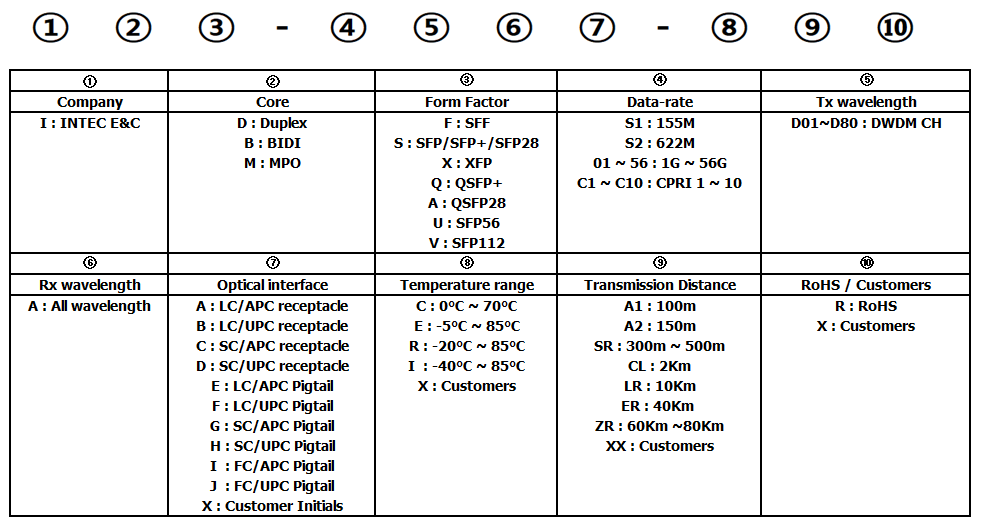

- Ordering information
Operating Data Rate 100Mb ~ 4.25 Gbps
Available in all C-Band Wavelengths on the 50GHz or 100Ghz DWDM ITU Grid
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP Footprint Duplex LC Connector Interface
Compliant with SFP MSA
Compliant with SFF-8472
Operating Case Temperature: Standard: 0 to 70°C / Extended: -5 to 70°C
Amplified DWDM networks
Ring topologies with fixed and
Reconfigurable OADMs
Fast Ethernet, Giga Ethernet
Fiber Channel and SDH
| Part. No | Fiber type | Data Rate | Wavelength | Optical components | Distance | Power Budget | Connector | Case Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| . | SMF | up to 2.5Gbps | 100GHz DWDM | DFB/PIN | . | 15dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 100GHz DWDM | DFB/PIN | . | 17dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 100GHz DWDM | DFB/APD | . | 29dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 100GHz DWDM | DFB/APD | . | 34dB | LC | C | [ - ] |
| . | SMF | up to 2.5Gbps | 50GHz DWDM | DFB/PIN | . | 15dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 50GHz DWDM | DFB/PIN | . | 17dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 50GHz DWDM | DFB/APD | . | 29dB | LC | C / I | [ - ] |
| . | SMF | up to 2.5Gbps | 50GHz DWDM | DFB/APD | . | 34dB | LC | C | [ - ] |
| . | SMF | up to 2.67Gbps | 100GHz DWDM | DFB/PIN | . | 15dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 100GHz DWDM | DFB/PIN | . | 17dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 100GHz DWDM | DFB/APD | . | 29dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 100GHz DWDM | DFB/APD | . | 33dB | LC | C | [ - ] |
| . | SMF | up to 2.67Gbps | 50GHz DWDM | DFB/PIN | . | 15dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 50GHz DWDM | DFB/PIN | . | 17dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 50GHz DWDM | DFB/APD | . | 29dB | LC | C / I | [ - ] |
| . | SMF | up to 2.67Gbps | 50GHz DWDM | DFB/APD | . | 32dB | LC | C | [ - ] |
| . | SMF | up to 4.25Gbps | 100GHz DWDM | DFB/PIN | . | 13dB | LC | C / I | [ - ] |
| . | SMF | up to 4.25Gbps | 100GHz DWDM | DFB/PIN | . | 18dB | LC | C / I | [ - ] |
| . | SMF | up to 4.25Gbps | 100GHz DWDM | DFB/APD | . | 24dB | LC | C / I | [ - ] |
| . | SMF | up to 4.25Gbps | 50GHz DWDM | DFB/PIN | . | 13dB | LC | C / I | [ - ] |
| . | SMF | up to 4.25Gbps | 50GHz DWDM | DFB/PIN | . | 18dB | LC | C / I | [ - ] |
| . | SMF | up to 4.25Gbps | 50GHz DWDM | DFB/APD | . | 26dB | LC | C / I | [ - ] |
