The OSA is driven by a custom IC which converts differential CML logic signals into a laser diode drive current. The receiver includes a planar InGaAs PIN-PD mounted with a transimpedance preamplifier IC in an OSA. The OSA is mated to a custom limiting-amplifier which provides post-amplification and signal detect function (Logic 0 indicates normal operation).
The transceivers are designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to 70℃
Standard Small Form Pluggable package with receptacle LC/UPC connector
Compliant with SFP MSA
SFF-8472 compliant digital diagnostic monitoring function implemented
Internally calibrated mode
850nm VCSEL Transmitter
High sensitive PIN photodiode Receiver
Single +3.3V power supply
Operating case temperature : 0 ℃ to 70℃
Differential CML inputs and outputs
Internally AC-Coupled electrical interface
RoHS compliant
Digital Wireless Repeaters
10GBASE-SW at 9.953Gbps
10GBASE-SR at 10.3125Gbps
Other Optical links

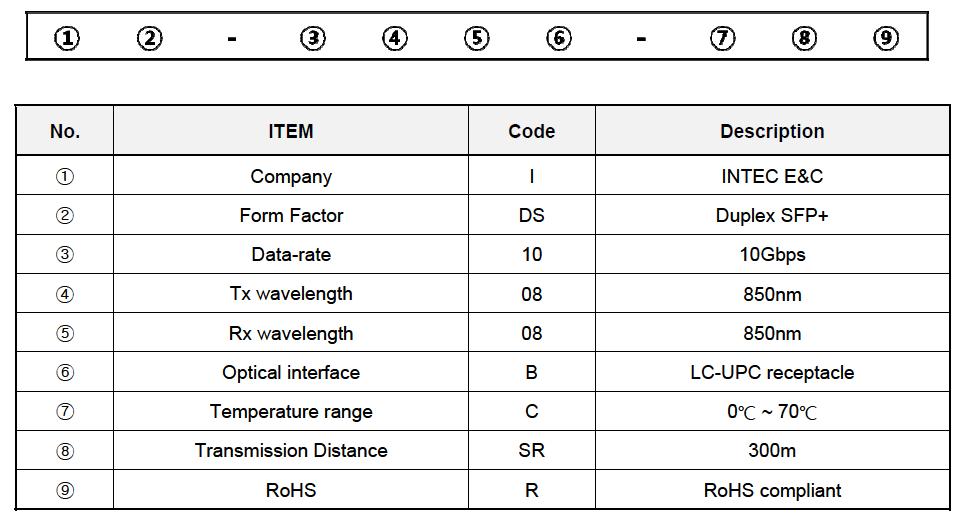

| Part. No | Fiber type | Data Rate | Wavelength | Optical components | Distance | Power Budget | Connector | Case Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| IDS-100808B-CSRR | MMF | 10.3125Gbps | 850 | VCSEL / PIN | 300M | LC | C | data sheet download |
