200G QSFP56 Optical Transceiver

Intec E&C's 200G QSFP56 transceivers are addressing the technical challenges of achieving high speed and low cost datacenter. They are using 4x50Gb/s PAM4 channels to achieve a 200GE connectivity suitable for switch interconnectivity. This transceiver consists a transmitter/receiver unit operating on a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300nm or 4 channels 850nm wavelength. The electrical interface of the module is compliant with the 200GAUI-4 interface as defined by IEEE 802.3bs.

View Other Products
Features

Hot-pluggable QSFP56 transceiver modules

4x 50G PAM4 electrical interface

4x 50G PAM4 optical interface

Data rate up to 53.125Gbps per channel

Compliant with QSFP56 MSA, CMIS and IEEE 802.3

Low power dissipation

Commercial case operating temperature range

Single 3.3V power supply

Built-in digital diagnostic functionality

RoHS compliant (lead free)

Applications

EEE802.3cd 200GBASE-SR4, DR4, FR4, LR4 Ethernet (PAM4)

IEEE802.3bm 100GBASE-SR4, DR4, FR4, LR4 Ethernet (NRZ)

High-speed data links.

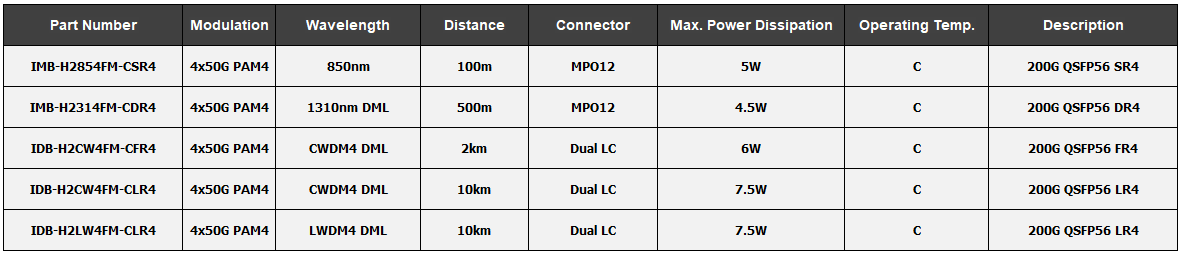

Ordering
Information
