6Gbps SC/APC BIDI SFP+ Optical Transceiver

Functional Description

     This transceivers are designed to meet serial optical data communications specification. The transceivers are manufactured in hot pluggable capability package with receptacle SC/APC connector interface and made of metallized housing to obtain excellent EMI shielding.

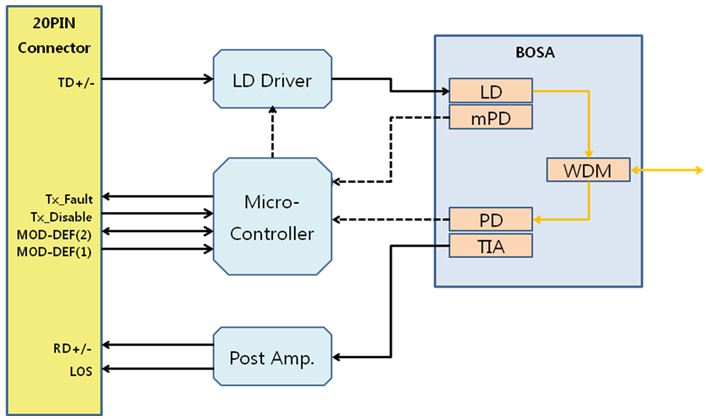

    The transmitter consists of DFB laser in an optical subassembly (OSA).

The OSA is driven by a custom IC which converts differential CML logic signals into a laser diode drive current. The receiver includes a planar InGaAs PIN-PD mounted with a transimpedance preamplifier IC in an OSA. The OSA is mated to a custom limiting-amplifier which provides post-amplification and signal detect function (Logic 0 indicates normal operation).


The transceivers are designed to used in a single power supply (+3.3V) and an operating temperature range of -30℃ to 85℃




  • Features
  • Applications
  • Data sheet
  • Ordering information

 Standard Small Form Pluggable package with SC/APC Receptacle connector

Compliant with SFP MSA

SFF-8472 compliant digital diagnostic monitoring function implemented

Internally calibrated mode

Uncooled DFB lasers Transmitter

High sensitive PIN photodiode Receiver

Single +3.3V power supply

Operating case temperature; -30℃ to +85℃

 Differential CML inputs and outputs

Internally AC-Coupled electrical interface

RoHS compliant



Digital Wireless Repeaters
Digital Wireless BTS Interconnects: OBSAI and CPRI Standards
Metro Access Rings

data sheet

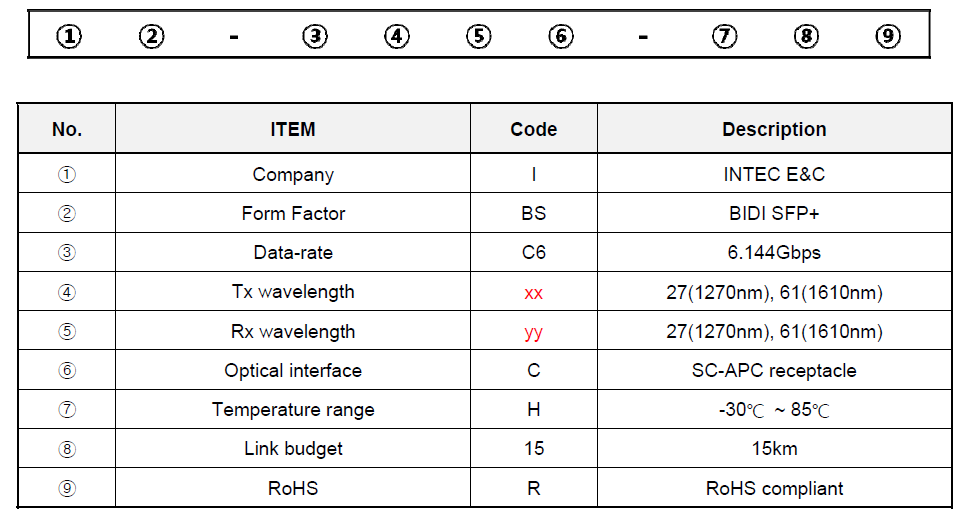

Part. No Fiber type Data Rate Wavelength Optical components Distance Power Budget Connector Case Temp Datasheet
IBS-C6xxyyC-H20R SMF Up to 6.144Gbps CWDM DFB / PIN 20km SC/APC E data sheet download
