25Gbps LC Duplex SFP28 ER Optical Transceiver

The transceiver is the SFP28 optical transceiver module which is a hot pluggable form factor designed for high speed optical networking application. The transceiver is designed for 25Gigabit Ethernet application, 2-wire management interface. The transceiver converts 25Gb/s electrical data streams to 25Gb/s optical output signal and 25Gb/s optical input signal 25Gb/s electrical data streams.

Now developing & Contact to the sales

View Other Products
Description

The high performance EML transmitter and high sensitivity APD receiver provide superior performance for 25Gigabit Ethernet applications up to 40km links.


The transceiver is designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to +70℃(-40℃ to +85℃:Option).





Features

Cooled EML transmitter
High sensitive APD Receiver
LC Duplex optical receptacle
SFF-8472 compliant digital diagnostic monitoring function implemented
Operating case temperature range from 0℃ to 70℃(-40℃ to +85℃:Option)
Low power consumption: Max. 2.0W
Hot-pluggable to 20-pin electrical interface
2-wire management interface
Class 1 Laser safety
RoHS 6/6 compliant

Applications

Local area networks
Wide area networks
Digital Wireless Repeater
Storage area networks

Data sheet
data sheet
Part. No Fiber type Data Rate Wavelength Optical components Distance Power Budget Connector Case Temp Datasheet

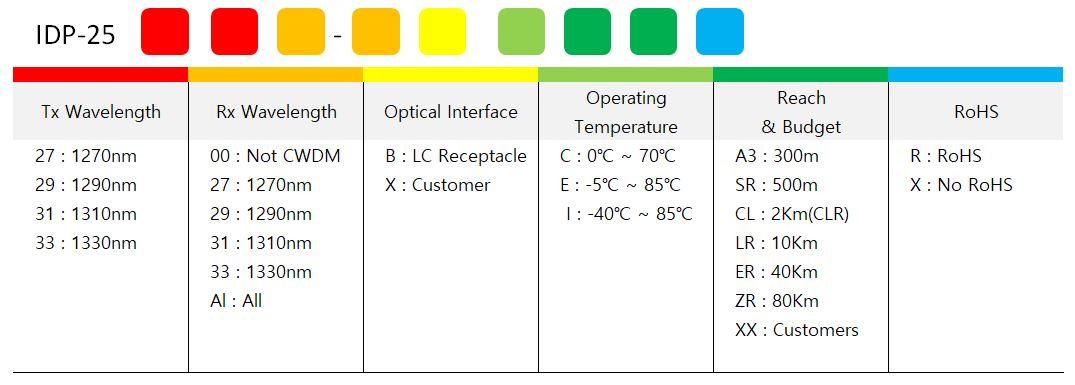

Ordering
Information
