The OSA is driven by a custom IC which converts differential CML logic signals into a laser diode drive current. The receiver includes a planar InGaAs PIN-PD mounted with a transimpedance preamplifier IC in an OSA. The OSA is mated to a custom limiting-amplifier which provides post-amplification and signal detect function (Logic 0 indicates normal operation).
The transceivers are designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to 70℃
Standard Small Form Pluggable package with receptacle LC/UPC connector
Compliant with SFP MSA
SFF-8472 compliant digital diagnostic monitoring function implemented
Internally calibrated mode
Uncooled 1270nm and 1330nm CWDM DFB Laser Transmitter
High sensitive PIN photodiode Receiver
Single +3.3V power supply
Operating case temperature : 0 ℃ to 70℃ (Option : -40 ℃ to 85℃
Differential CML inputs and outputs
Internally AC-Coupled electrical interface
RoHS compliant
Digital Wireless Repeaters
High-speed Optical data links..
10GBASE-ER at 10.3125Gbps
10GBASE-EW at 9.953Gbps

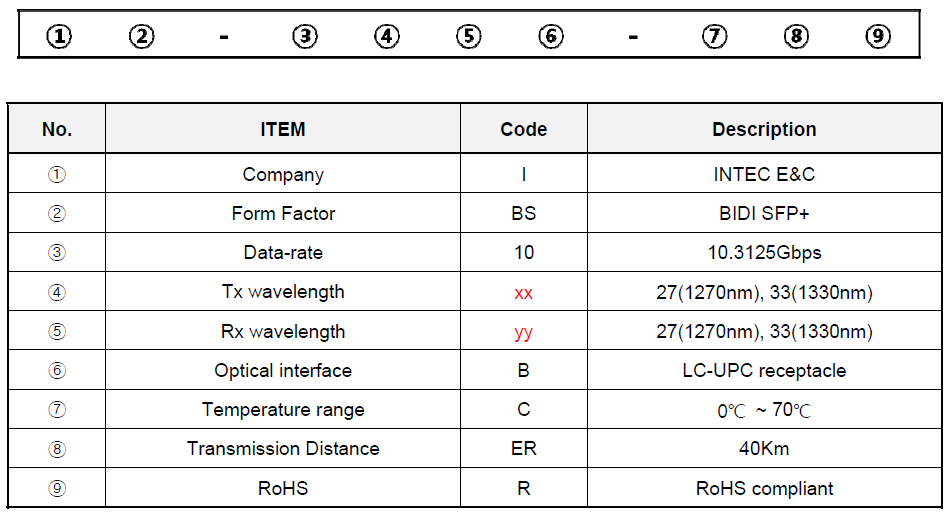

| Part. No | Fiber type | Data Rate | Wavelength | Optical components | Distance | Power Budget | Connector | Case Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| IBS-10xxyyB-CERR | SMF | 10.3125Gbps | 1270/1330 | DFB / PIN | 40Km | LC | C | data sheet download |
