The OSA is driven by a custom IC which converts differential CML logic signals into a laser diode drive current. The receiver includes a planar InGaAs APD mounted with a transimpedance preamplifier IC in an OSA. The OSA is mated to a custom limiting-amplifier which provides post-amplification and signal detect function (Logic 0 indicates normal operation).
The transceivers are designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to 70℃
Standard Small Form Pluggable package with receptacle LC/UPC connector
Compliant with SFP MSA
SFF-8472 compliant digital diagnostic monitoring function implemented
Internally calibrated mode
Cooled EML Transmitter
High sensitive APD Receiver
Single +3.3V power supply
Operating case temperature : 0 ℃ to 70℃
Differential CML inputs and outputs
Internally AC-Coupled electrical interface
RoHS compliant
Digital Wireless Repeaters
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
High-speed Optical data links

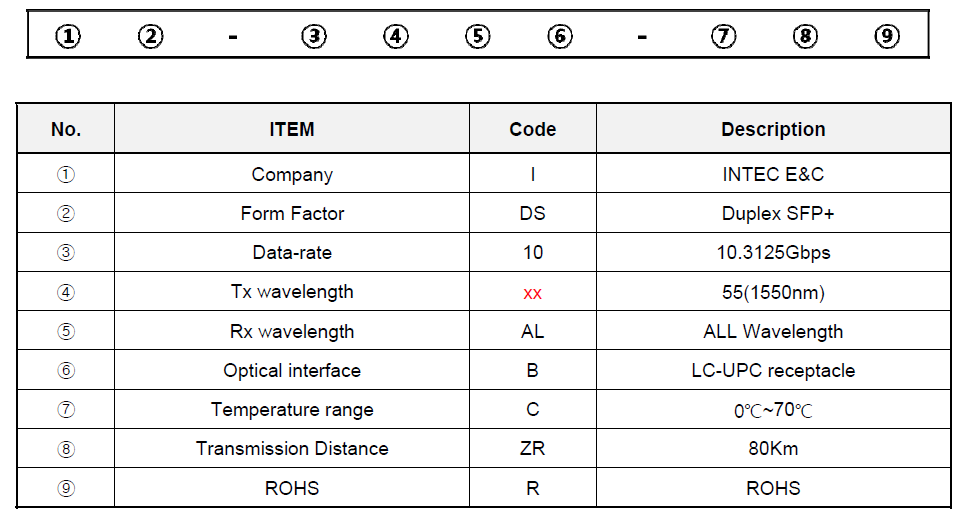

| Part. No | Fiber type | Data Rate | Wavelength | Optical components | Distance | Power Budget | Connector | Case Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| IDS-1055ALB-CZRR | SMF | 10.3125Gbps | 1550 | EML / APD | 80Km(70Km) | LC | C | data sheet download |
