10Gbps LC Duplex SFP+ LR Optical Transceiver

Functional Description

    IDS-10XXAIB-CLRR SFP+ transceivers are designed to meet serial optical data communications specification. The transceivers are manufactured in hot pluggable capability package with receptacle LC connector interface and made of metallized housing to obtain excellent EMI shielding.

    The transmitter consists of DFB laser in an optical subassembly (OSA).


The OSA is driven by a custom IC which converts differential CML logic signals into a laser diode drive current. The receiver includes a planar InGaAs PIN-PD mounted with a transimpedance preamplifier IC in an OSA. The OSA is mated to a custom limiting-amplifier which provides post-amplification and signal detect function (Logic 0 indicates normal operation).

The transceivers are designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to 70℃




  • Features
  • Applications
  • Data sheet

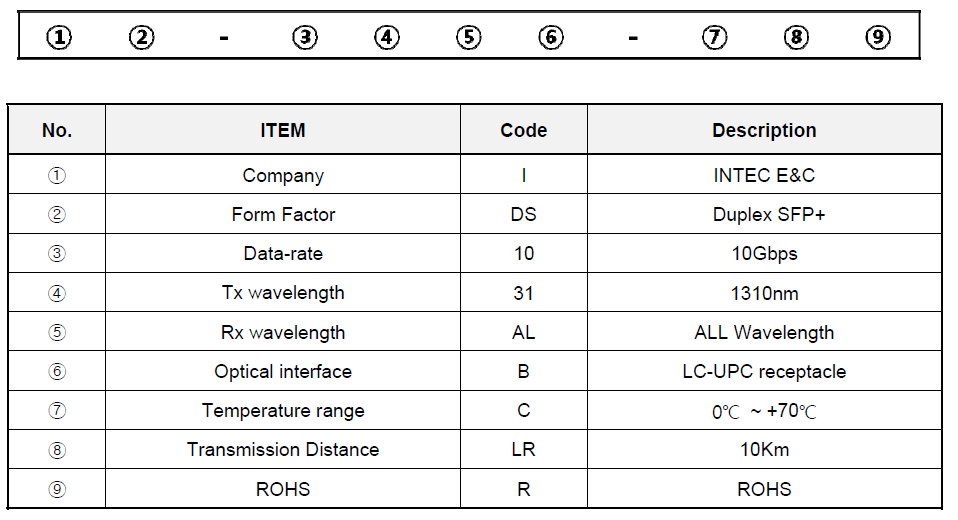

  • Ordering information

Standard Small Form Pluggable package with receptacle LC/UPC connector
Compliant with SFP MSA
SFF-8472 compliant digital diagnostic monitoring function implemented
Internally calibrated mode
Uncooled DFB Laser Transmitter
High sensitive PIN photodiode Receiver
Single +3.3V power supply
Operating case temperature : 0 ℃ to 70℃
Differential CML inputs and outputs
Internally AC-Coupled electrical interface
RoHS compliant

Digital Wireless Repeaters

​10GBASE-LR at 10.3125Gbps

​10GBASE-LW at 9.953Gbps

​High-speed Optical data links.

data sheet
Part. No Fiber type Data Rate Wavelength Optical components Distance Power Budget Connector Case Temp Datasheet
IDS-1031ALB-CLRR SMF 10.3125Gbps 1310 DFB / PIN 10km LC C data sheet download
