25Gbps LC BIDI SFP28 ER Lite Optical Transceiver

Functional Description

    The transceiver is the SFP28 optical transceiver module which is a hot pluggable form factor designed for high speed optical networking application. The transceiver is designed for 25Gigabit Ethernet application, 2-wire management interface. The transceiver converts 25Gb/s electrical data streams to 25Gb/s optical output signal and 25Gb/s optical input signal 25Gb/s electrical data streams.


    The high performance DFB LD transmitter and high sensitivity PIN PD receiver provide superior performance for 25Gigabit Ethernet applications up to 20km links.

The transceiver is designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to +70℃(-40℃ to +85℃:Option).





  • Features
  • Applications
  • Data sheet

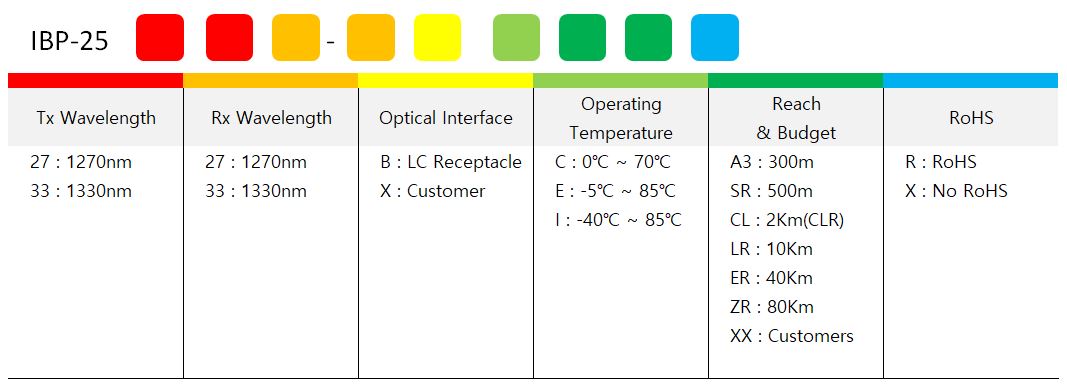

  • Ordering information

Uncooled DFB Laser transmitter
High sensitive PIN PD Receiver
LC BIDI optical receptacle
SFF-8472 compliant digital diagnostic monitoring function implemented
Operating case temperature range from 0℃ to 70℃(-40℃ to +85℃:Option)
Low power consumption: Max. 1.5W
Hot-pluggable to 20-pin electrical interface
2-wire management interface
Class 1 Laser safety
RoHS 6/6 compliant

Local area networks
Wide area networks
Digital Wireless Repeater
Storage area networks

data sheet
Part. No Fiber type Data Rate Wavelength Optical components Distance Power Budget Connector Case Temp Datasheet
IBP-252733B-C30R Single Mode 25Gbps 1270/1330 DFB / APD 30km LC BIDI C/I data sheet download
IBP-253327B-C30R Single Mode 25Gbps 1330/1270 DFB / APD 30km LC BIDI C/I data sheet download
