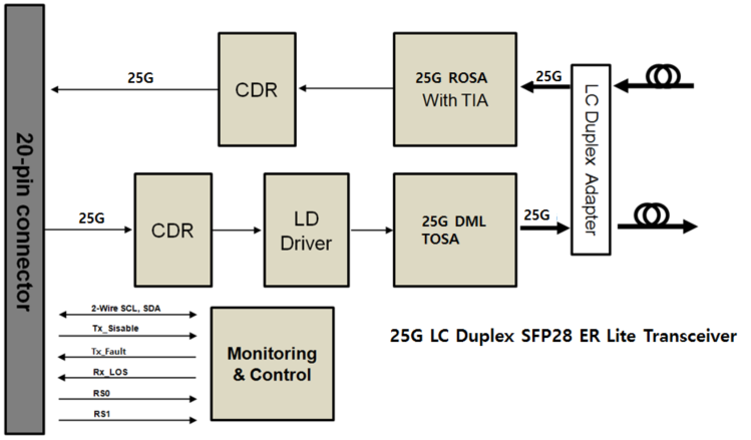

Description
The transceiver is designed to used in a single power supply (+3.3V) and an operating temperature range of 0℃ to +70℃(-40℃ to +85℃:Option).
Features
Uncooled DFB Laser transmitter
High sensitive PIN photodiode Receiver
LC Duplex optical receptacle
SFF-8472 compliant digital diagnostic monitoring function implemented
Operating case temperature range from 0℃ to 70℃(-40℃ to +85℃:Option)
Low power consumption: Max. 1.5W
Hot-pluggable to 20-pin electrical interface
2-wire management interface
Class 1 Laser safety
RoHS 6/6 compliant
Applications
Local area networks
Wide area networks
100G Ethernet switches and routers
Storage area networks
Data sheet
| Part. No | Fiber type | Data Rate | Wavelength | Optical components | Distance | Power Budget | Connector | Case Temp | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| IDP-2527ALB-C20R | Single Mode | 25Gbps | 1270nm | DFB / PIN | 10km/20km | LC Duplex | C/I | data sheet download | |
| IDP-2529ALB-C20R | Single Mode | 25Gbps | 1290nm | DFB / PIN | 10km/20km | LC Duplex | C/I | data sheet download | |
| IDP-2531ALB-C20R | Single Mode | 25Gbps | 1310nm | DFB / PIN | 10km/20km | LC Duplex | C/I | data sheet download | |
| IDP-2533ALB-C20R | Single Mode | 25Gbps | 1330nm | DFB / PIN | 10km/20km | LC Duplex | C/I | data sheet download |

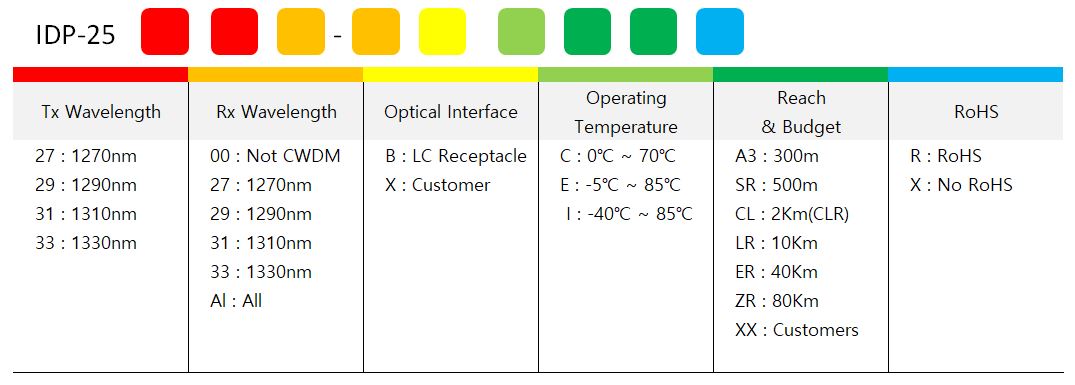

Ordering
Information
Information
